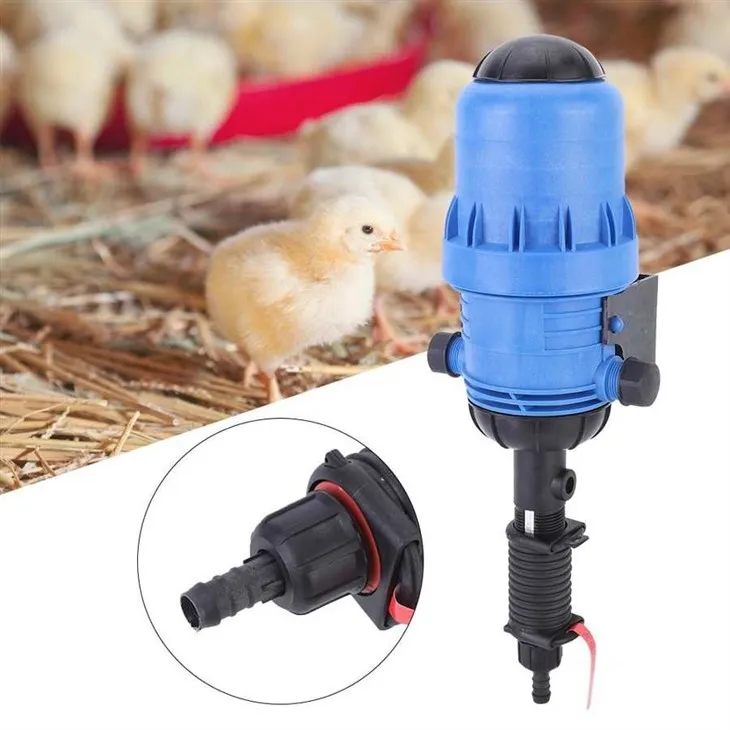

| Product Name | chemical dispensing Fertilizer Dosing Pump |
| Pressure | water powered |
| Proportional range | 0.4-4 % |
| Flow-rate range | 20-2500 L/H |
| Theory | Mixed Flow Pump, Proportional pump |
| Structure | Piston Pump |
| Working temperature | 5-40℃ |
| Water pressure | 4.30 to 85.0 PSI |
| Concentrated liquid injection flow rate | 0.02 L/h to 50 L/h |
| Connect pipe dia | 3/4" |
| Flow range | 10 L/h to 2.5 m3/h (0.16 L/min) |
USE TIP:
Prolong the service life and install filters to ensure the water quality entering the dosing device, so as to reduce wear. Ensure that there are no impurities and particulate matter in the barrel. Ensure that the filter head at the bottom of the suction pipe is installed well. Feeding - soluble powder ensure that the powder is soluble, and start sucking after the powder has been fully dissolved. If necessary, the powder can be dissolved in hot water, but it needs to be cooled before starting to suck. If the powder is not completely dissolved, it will wear the piston, washer and other internal parts.
